Discharge Machine

EBC-B20H

The tester is designed for capacity test of 12-72V battery packs.
You can set up discharging current and cut-off voltage.
The tester supports automatic discharge and with a portable external battery charger it allows automatic charge.
Connect it to a computer for a complete test graph and extensive functions.

Quantity:

Contact Now

add to cart

	Technial Data
1	Input power: AC 100-240V
2	Cut-off voltage: 8.00-88.00V, stepper 0.01V
3	Discharge current: 0.10-20.00A, stepper 0.01A (to discharge 12V battery packs the max current is 10A)
4	Discharge voltage: 0.10-89.00V, stepper 0.01V
5	Capacity detection:
	< 10Ah, 0.001Ah;
	10-100Ah, 0.01Ah;
	> 100Ah, 0.1Ah
6	Test mode DSC: the tester can discharge the battery packs at a constant current and it stops automatically when the testing voltage reaches below the set value.
7	Test mode CHG: the tester can charge the battery packs with an external charger and it stops automatically when the current reaches below the set value.
8	LCD display: voltage, current, time, capacity, and etc.

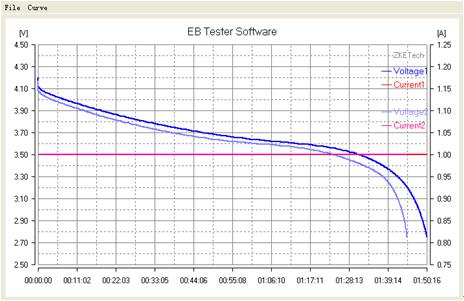

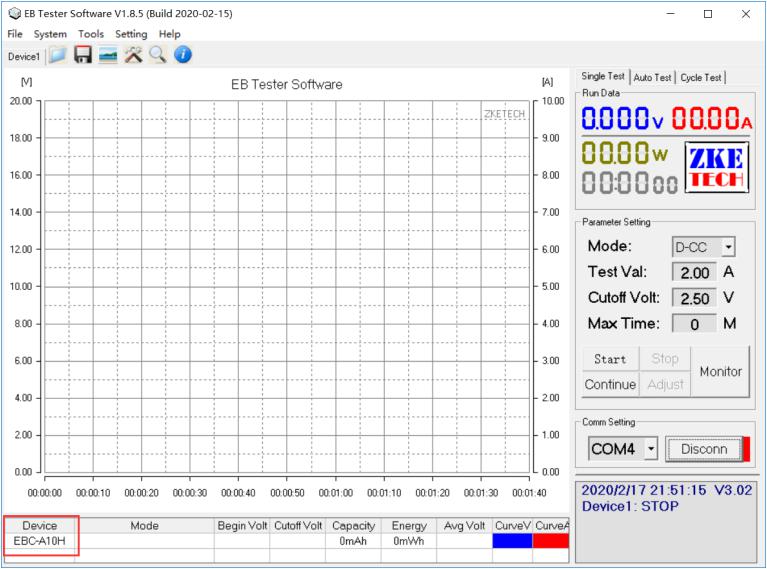

9	PC connection: the tester can connect to a computer through a designated USB-TTL cable for more functions, like graphs, calibration, firmware upgrade, and test circulation.

Discharge machine Li ion battery discharge machine 10A discharge machine

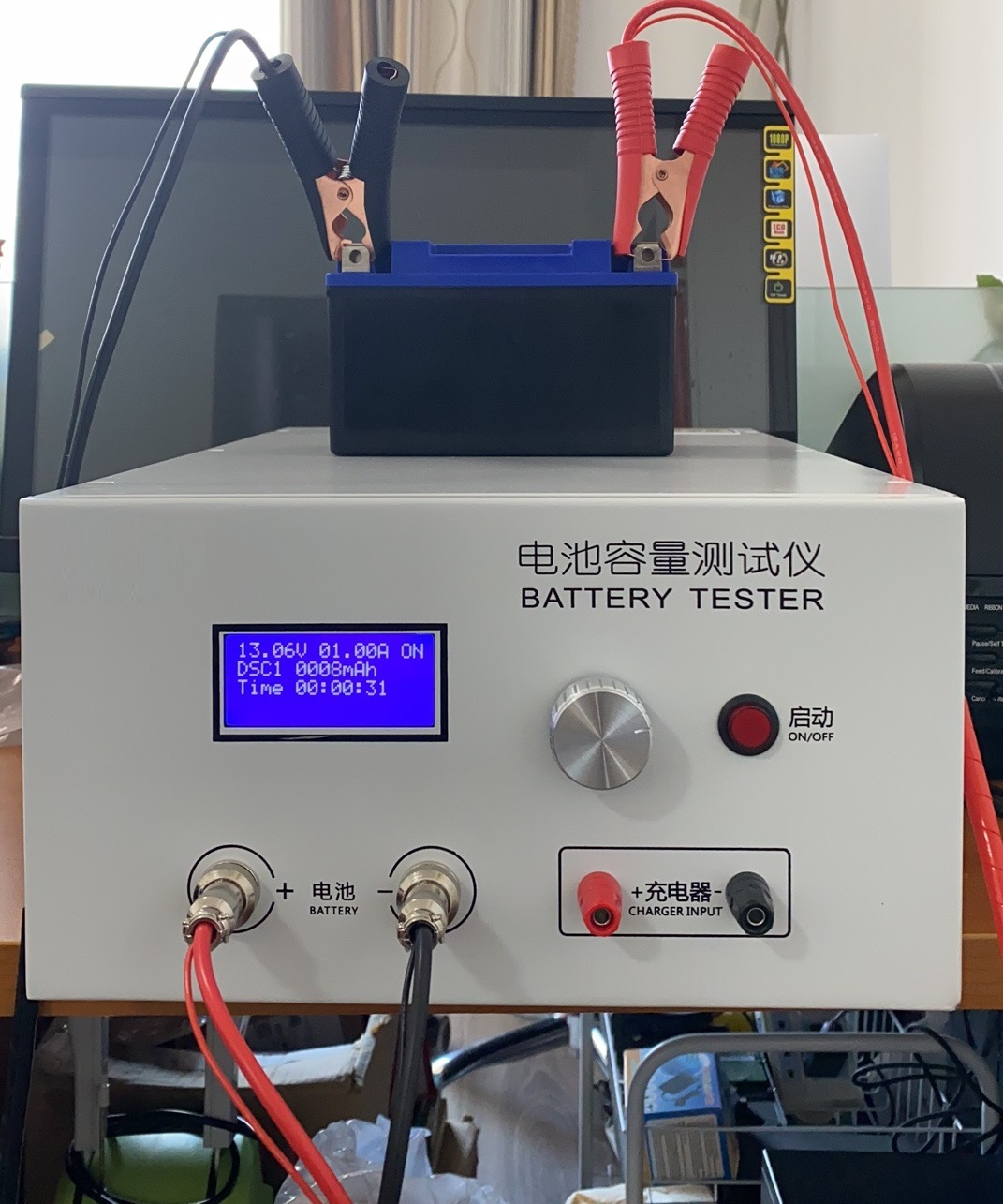

	Connecting pattern
1	Battery connector
	You can connect batteries to two aerial sockets on the front panel of the tester. Connect the
	battery positive pole to the left socket and negative pole to the right one.
2	Charger connector
	You can connect a portable external charger to two posts on the back panel. Connect the
	charger positive pole to red post and negative pole to the black post.
3	PC connection
	The tester can connect with a computer through a designated USB-TTL cable (with aerial sockets).

OurDischarge Machine (Model EBC-B20H) is a professional-grade high-precision battery analyzer engineered for capacity testing and performance evaluation of 12–72V rechargeable battery packs. As an automatic battery discharge tester, it supports both constant-current discharge and automatic charging (with an external portable charger), enabling full-cycle testing of lithium-ion, lead-acid, and other battery chemistries.

The EBC-B20H offers exceptional precision: discharge current (0.10–20.00A, 0.01A step), discharge voltage (0.10–89.00V, 0.01V step), and cutoff voltage (8.00–88.00V, 0.01V step). Its rechargeable battery capacity tester function provides tiered accuracy: 0.001Ah for <10Ah packs, 0.01Ah for 10–100Ah packs, and 0.1Ah for >100Ah packs, ensuring reliable capacity measurement across a wide range of battery sizes.

Equipped with an LCD display for real-time monitoring of voltage, current, time, and capacity, the tester also connects to a PC via a USB-TTL cable for advanced functions—including test graph visualization, calibration, firmware upgrades, and automated test cycles. Whether you’re conducting R&D, quality control, or maintenance, our Discharge Machine delivers the accuracy, flexibility, and automation required for comprehensive battery testing.
