Li-ion Battery Pack
A good li battery pack needs the professional structure design from
how to connect the cells,
how to select a suitable pcb
how to choose a correct connector
how to do a nice outside case on the condition of usage
Ly-On also supply the relative accessories to make the packs.
A typical lithium-ion battery pack consist of single or multiple lithium-ion cells, a protective circuit board and output connector. A good li battery pack needs the professional structure design from how to connect the cells, how to select a suitable pcb and how to choose a correct connector and how to do a nice outside case on the condition of usage. It involves the structure design, electric components and even the mold inject industry in a small battery pack. For guarantee the good performance, safety and long service life of a battery pack, It also needs a stable team of workers and the professional engineer group to ensure the qualified rate by machine or by hand-operation in a battery pack factory.
Ly-On is professional to make various kinds of the battery pack with nearly 20 years experience.
Battery Picture | Technical Details |

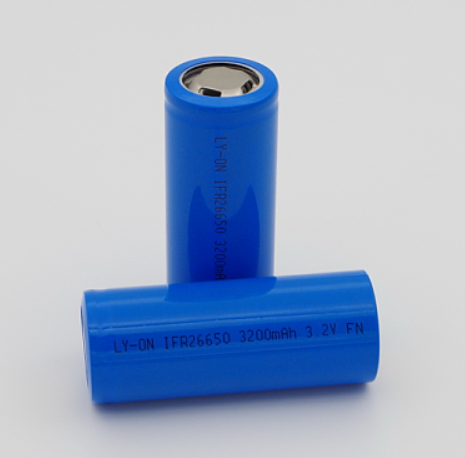

Model. LFP26650 P/N Code：LY0011ION-P/C Typical Voltage: 3.2V Work Voltage Range; 2.5-3.65V Capacity: 2.5Ah/3.2Ah Applied Current: ≤15A Cycle Life: >2000 cycles (at 0.2C charge/discharge) Size: max. 26.5*60.00mm (design the different battery pack on the basic of application)) Protection: Over-Charge/Over-Discharge/Over-Current/Short Circuit Application: power of 12V application, Power tool, electric ciga, sightseeing auto, golf car, and so on.. |
Battery Picture | Technical Details |

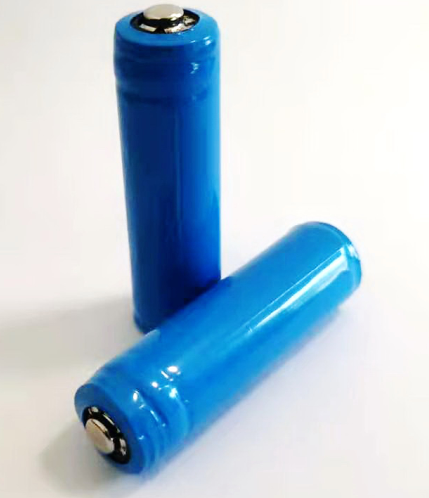

Model: 1SICR14450 P/N Code：LY0001ION Typical Voltage: 3.6V Work Voltage Range; 3.0-4.2V Capacity: 650mAh Applied Current: 2A Cycle Life: >500 cycles (at 0.2C charge/discharge) Size: max. 14.6*51mm with high top Protection: Over-Charge/Over-Discharge/Over-Current/Short Circuit Application: torch/flashlight/replace nimh AA battery |
Battery Picture | Technical Details |

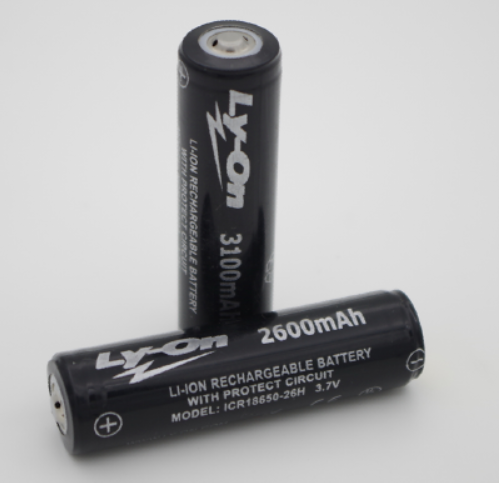

Model: 1SICR18650 P/N Code：LY0002ION-26/31 Typical Voltage: 3.6V Work Voltage Range; 3.0-4.2V Capacity: 2600mAh/3100mAh Applied Current: 2A Cycle Life: >500 cycles (at 0.2C charge/discharge) Size: max. 18.8*70mm with high top Protection: Over-Charge/Over-Discharge/Over-Current/Short Circuit Application: torch/flashlight/replace nimh battery |
Battery Picture | Technical Details |

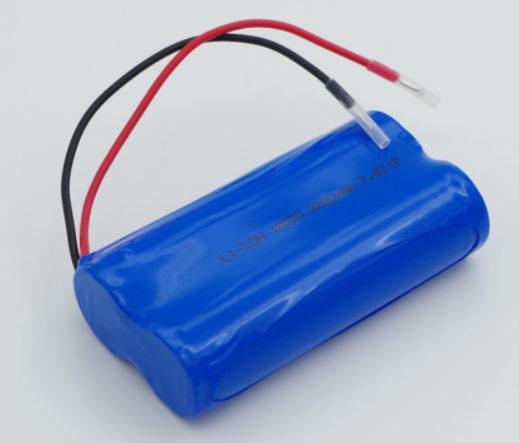

Model: 2SICR18650 P/N Code：LY0003ION-22/26/30 Typical Voltage: 7.2V Work Voltage Range;6.0-8.4V Capacity: 2200mAh/2600mAh/3000mAh Applied Current: 2A/5A Cycle Life: >500 cycles (at 0.2C charge/discharge) Size: max. 37.6*66*18.9mm (cable length and connectors can be appointed Protection: Over-Charge/Over-Discharge/Over-Current/Short Circuit Application: power of dispenser, scanner gun, code reader, auto lock, GPS, RC toys and so on. |
Battery Picture | Technical Details |

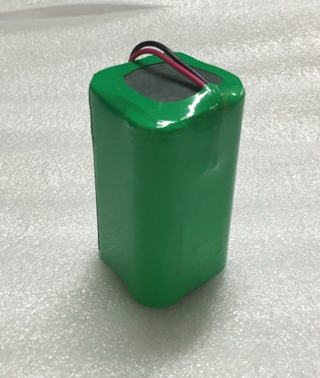

| Model:2S2PICR18650 P/N Code: LY0004ION-22/26 Typical Voltage: 7.2V Work Voltage Range; 6.0-8.4V Capacity: 4400mAh/5200mAh Applied Current: 2A/5A Cycle Life: >500 cycles (at 0.2C charge/discharge) Size: max. 37.6*66*37.6mm (cable length and connectors can be appointed) Protection: Over-Charge/Over-Discharge/Over-Current/Short Circuit Application: power of e-bike light, lamp, RC toy, auto lock and so on. |
Battery Picture | Technical Details |

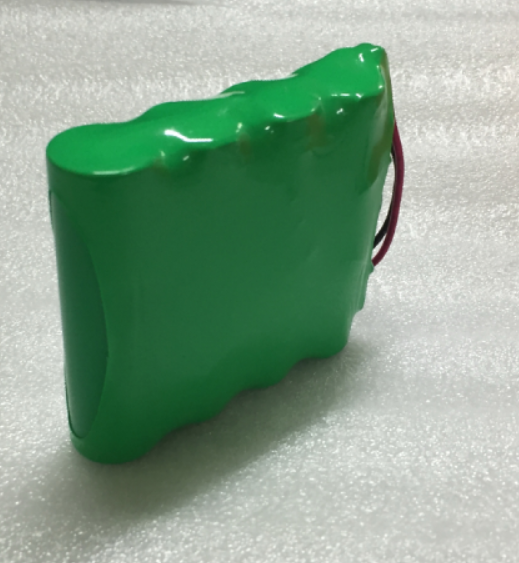

Model：4SICR18650 P/N Code: LY0005ION-22/26/30 Typical Voltage: 14.4V Work Voltage Range; 12.0-16.8V Capacity: 2200mAh/2600mAh/3000mAh Applied Current: 2A/5A Cycle Life: >500 cycles (at 0.2C charge/discharge) Size: max. 75*66*18.8mm (cable length and connectors can be appointed) Protection: Over-Charge/Over-Discharge/Over-Current/Short Circuit Application: power of RC toy, auto lock, CCTV Camera and so on. |
Battery Picture | Technical Details |
Model：4S6PICR18650 P/N Code: LY0006ION-22/26/30 Typical Voltage: 14.4V Work Voltage Range; 12.0-16.8V Capacity: 13Ah/15.5Ah/18Ah Applied Current: 5A/10A Cycle Life: >500 cycles (at 0.2C charge/discharge) Size: max. 60*160*70mm (cable length and connectors can be appointed) Protection: Over-Charge/Over-Discharge/Over-Current/Short Circuit Application: power of RC toy, CCTV Camera, high-discharge device and so on. |
Battery Picture | Technical Details |

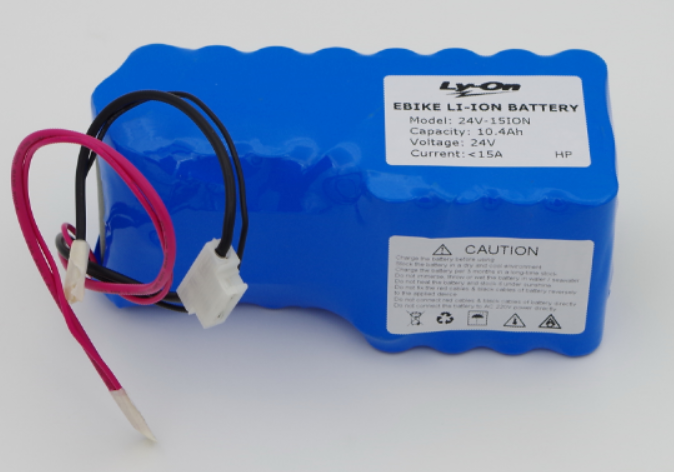

Model：7S4PICR18650 P/N Code: LY0007ION-26/30 Typical Voltage: 24V Work Voltage Range; 21-29.4V Capacity: 10Ah/12Ah Applied Current: ≤15A Cycle Life: >500 cycles (at 0.2C charge/discharge) Size: max. 165*76*70mm (cable length and connectors can be appointed) Protection: Over-Charge/Over-Discharge/Over-Current/Short Circuit Application: power of e-bike, fixed in the downtube box. |
Battery Picture | Technical Details |

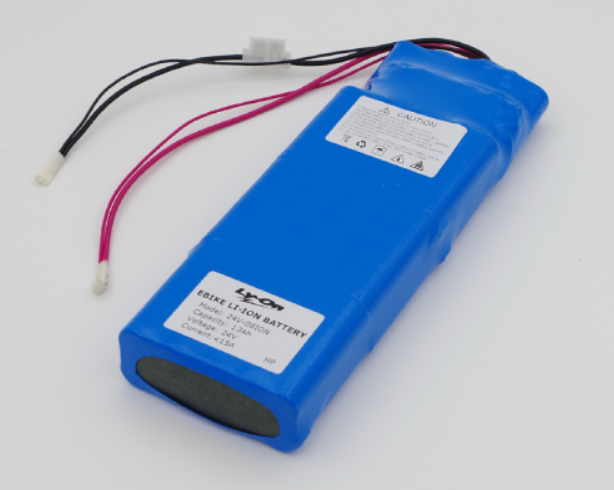

Model：7S5P18650 P/N Code: LY0008ION-26/30 Typical Voltage: 24V Work Voltage Range; 21-29.4V Capacity: 13Ah/15Ah Applied Current: ≤15A Cycle Life: >500 cycles (at 0.2C charge/discharge) Size: max. 95*40*268mm (cable length and connectors can be appointed) Protection: Over-Charge/Over-Discharge/Over-Current/Short Circuit Application: power of e-bike, fixed in the rack battery box. |
Battery Picture | Technical Details |

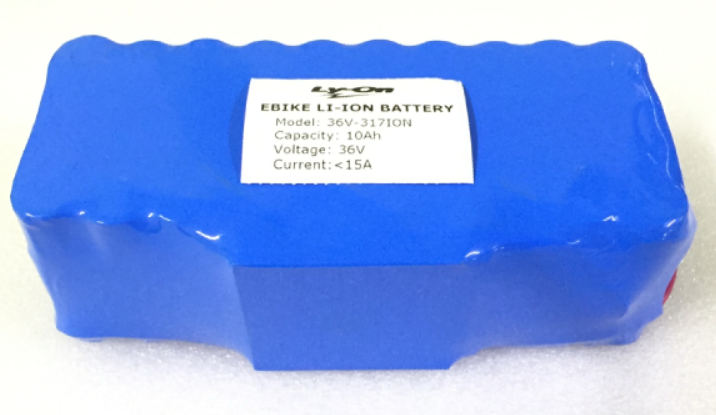

Model：10S4PICR18650 P/N Code: LY0009ION-26/30 Typical Voltage: 36 V Work Voltage Range; 30-42V Capacity: 10Ah/12Ah Applied Current: ≤15A Cycle Life: >500 cycles (at 0.2C charge/discharge) Size: max. 90*68*190mm (cable length and connectors can be appointed) Protection: Over-Charge/Over-Discharge/Over-Current/Short Circuit Application: power of e-bike, fixed in the downtube battery box. |
Battery Picture | Technical Details |
Model：10S5PICR18650 P/N Code: LY0010ION-26/30 Typical Voltage: 36V Work Voltage Range; 30-42V Capacity: 10Ah/12Ah Applied Current: ≤15A Cycle Life: >500 cycles (at 0.2C charge/discharge) Size: max. 40*140*240mm (cable length and connectors can be appointed) Protection: Over-Charge/Over-Discharge/Over-Current/Short Circuit Application: power of e-bike, fixed in the rack battery box. |
Ebike batteryStable and Reliable Quality of cells from the international brand factories A mature worker team to assembly the batteries. A professional BMS to supply the reliable protections in batteries. A complete test system to guarantee the quality of batteries. Ly-On can supply the relative battery kits to assembly it in the local market.24V/36V/48V li ion batterySend Inquiry
Cylindrical Cellhighest energy density Wide application in the daily life. Ly-On can supply the brand-name 18650 cells to make the battery pack.14430/14450/18650/21700Send Inquiry
Prismatic Li BatteryNMC/LiFePo4 material system Save more space in the volume Supply the higher capacity with the bigger size Apply in the auto industry and energy storage industryL148N58A/L221N113A/B / L221N169A/L194N149A/L194N161A/L221N107ASend Inquiry
